TG165

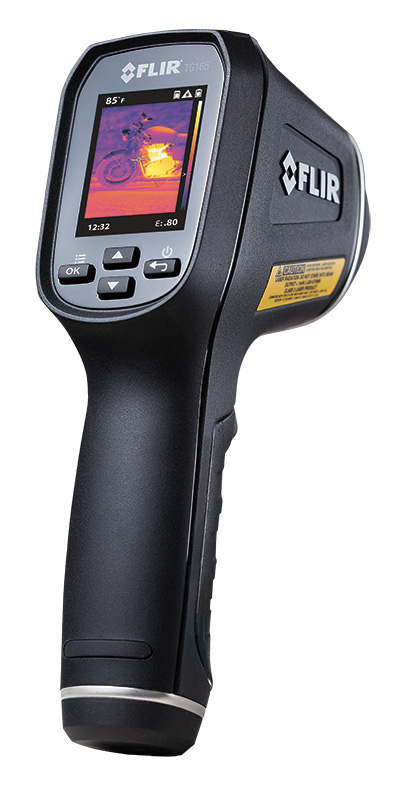

SPOT THERMAL CAMERA - FLIR

  • Instantly shows what’s hot and where to aim
  • 24:1 spot size ratio for safer distance measuring
  • Easily save images and data for documentation
  • Download images fast over USB or from removable micro SD
  • Compact and durable
TECHNICAL DATA

Thermal imaging

Imaging detector  FLIR Lepton Microbolometer focal plane array (FPA)
Image resolution 80 x 60 pixel
Fielf of view (FOV) 50° x 38,6°
Frame rate 9Hz
Saved image format Bitmap (BMP) image with temperature and emissivity

IR temperature measurement

Basic accuracy +/- 1,5% / 1.5°C
Temperature range -25°C +380°C
Dist. to spot ratio 24:1
Spectral reaponse 8-14 µm
Laser Diverging lasers, frames temp measurement area

General

Battery type Li-ion 3.7, 2600 mAh rechargeable (micro USB)
Unit size 186mm x 55mm x 94mm
Operating temperature 14°F +113°F
Memory 8Gb micro SD
Tripod mount 1/4" - 20 on handle bottom
